Cais:

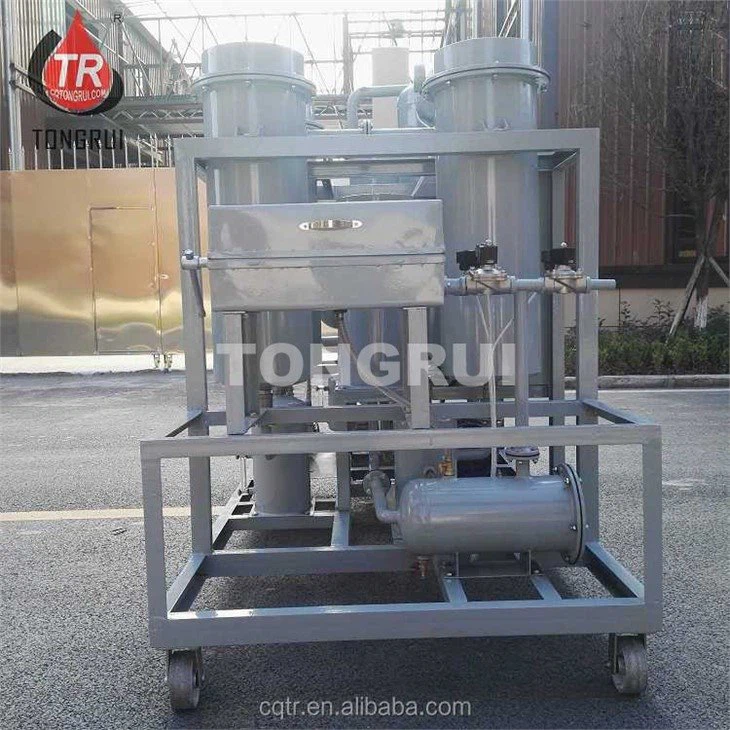

ZJC high vacuum turbine oil purifier is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This product, which can rapidly and effectively remove the water, gas and impurities according to turbine oil's nature of high water content, easy emulsification and high impurity content. And it make the oil recover the new oil's nature.
Manyleb Technegol
|
Eitem |
uned |
ZJC-10 |
ZJC-20 |
ZJC-30 |
ZJC-50 |
ZJC-75 |
ZJC-100 |
ZJC-150 |
ZJC-200 |
|
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4500 |
6000 |
9000 |
12000 |
|
|
Vacuum degree |
Mpa |
-0.06 -0.096 |
||||||||
|
Working pressure |
Mpa |
Llai na neu'n hafal i 0.3 |
||||||||
|
Fault free |
H |
Yn fwy na neu'n hafal i 4000 |
||||||||
|
Continuous working time |
H |
Mwy na neu'n hafal i 150 |
||||||||
|
Working temperature |
gradd |
40 70 |
||||||||
|
Heating power |
kW |
15 |
18 |
30 |
45 |
60 |
72 |
72 |
84 |
|
|
Total Power |
kW |
17 |
20 |
33 |
49 |
66 |
79 |
81 |
97 |
|
|
Diameter of inletoutlet |
DN |
25 |
25 |
25 |
32 |
42 |
42 |
50 |
50 |
|
|
pwysau |
Kg |
500 |
530 |
570 |
780 |
800 |
960 |
1050 |
1550 |
|
|
Dimensiynau |
L |
mm |
1300 |
1350 |
1450 |
1500 |
1500 |
1800 |
1800 |
1800 |
|
W |
mm |
1000 |
1000 |
1100 |
1150 |
1000 |
1500 |
1650 |
1500 |
|
|
H |
mm |
1450 |
1450 |
1500 |
1650 |
1750 |
1800 |
1900 |
2000 |
|
Nodweddion:
1. Dewater a thorri emulsification effeithlon. Tynnwch swm o ddŵr a lleithder. Fel mabwysiadu emulsification egwyl, y tro olew i fod yn glir. Defnyddiodd y dechneg cyfuno a gwahanu a thechnoleg anweddu stereo Duplex sydd â gallu cryf i dorri emwlsiwn a thynnu dŵr o'r olew.
2. Mae cymorth system hidlo aml-gam manwl gywir yn dileu gwahanol fathau o amhureddau.
3. Mae system reoli lefel hylif isgoch dwbl uwch a dyfais amddiffyn pwysau yn gwneud gweithrediad yn syml ac yn ddiogel.
4. Gall purifier olew tyrbin gwactod uchel ZJD puro unrhyw fath o olew tyrbin a ddefnyddir mewn tyrbin ager a thyrbin dŵr ar-lein ac ar y safle.
Egwyddorion gweithio
When high vacuum turbine oil purifier works, the waste oil remove large capacity of impurities through special filters. Use a special water separator and personalized vacuum separator, which used the oil-wet hydrophobic technology and "cavitation" principle, the waste oil in a vacuum separator expanded to several hundred times larger than the original, and "cavitation"system also allows the oil evaporation surface area is increasing, and evaporated interface constantly updated, so that the water in the oil quickly vaporized under low heat, high vacuum, large surface, high pumping speed conditions exhausted by the vacuum system.
Mae'r dŵr a'r nwy yn cael eu gollwng o ran uchaf y gwahanydd gwactod, ar ôl oeri ddwywaith a system oeri dadhumideiddiad, ac yn olaf yn cael ei ollwng o'r pwmp gwactod. Yr olew sych mewn gwahanydd gwactod sy'n dad-ddyfrio gan bwmp gwactod, ac yn dod yn bwysau positif trwy'r pwmp olew. Ar ôl hidlo mân, mae'r olew glân yn cael ei ollwng o'r falf allfa ar ôl oeri. Yna mae'r broses drosodd.
Mynegai olew ar ôl ei drin
|
Cynnwys dŵr |
Llai na neu'n hafal i 80ppm |
|
Cynnwys nwy |
Llai na neu'n hafal i 0.1 y cant |
|
glendid |
Less than or equal to 5µm(or as per requirement) |
|
Gwerth Demulsification |
Llai na neu'n hafal i 10 munud |
Gwasanaethau:
1. broses gyfan gosod, canllaw, hyfforddiant gan ein gwasanaeth tramor
2. Gwasanaeth cynnal a chadw ac amnewid, pan fo angen
3. Atgoffa am fywyd gwasanaeth y rhannau gwisgo / y talwyd i'w darparu
4. gosod canllaw ar gyfer cwsmeriaid o'r ddau Tsieina a thramor
5. gwasanaeth olrhain ar gyfer cynhyrchion am 12 mis, gwasanaeth oes
6. Provide for final oil's market suggestions
